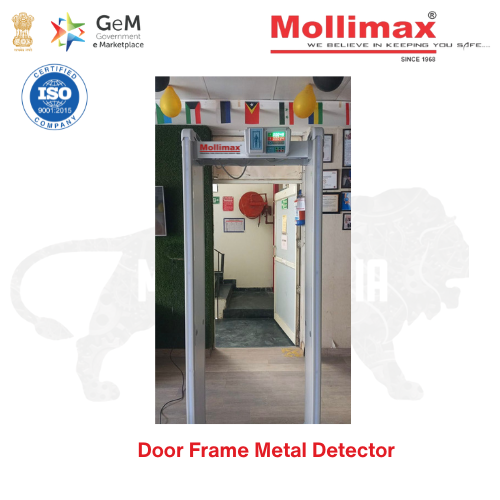

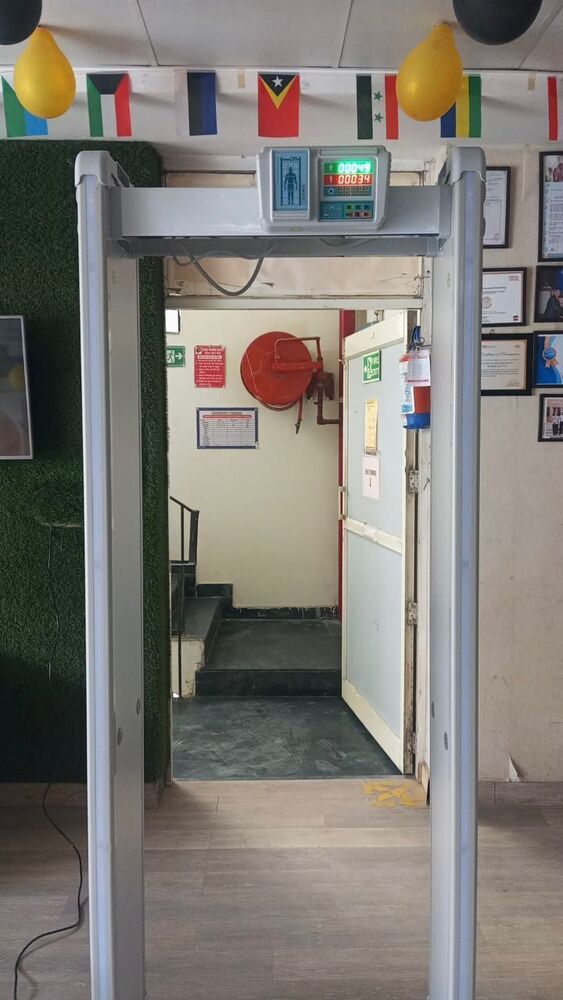

DFMD ( Door Frame Metal Detector)

Name: DFMD ( Door Frame Metal Detector)
Brand: Mollimax Fire Protection Industries Pvt Ltd
Price: 45000 INR
Availability: InStock

Price 45000 INR/ Set

Get a Price/Quote

MOQ : 1 Set

DFMD ( Door Frame Metal Detector) Specification

Function
Detects concealed metal objects on person passing through

Application
Security checking at entry and exit points

Waterproof
Yes, suitable for outdoor installation

Rejecter
Buzzer and LED indicators for rejection alert

Power Supply
AC 220V/50Hz

Sensitivity
Adjustable, detects small metal objects

Scanning Frequency
Adjustable frequency to reduce interference

Passage Dimension
2000 mm (H) x 700 mm (W) x 500 mm (D)

Installation Method
Easy assembly, installation manual included

Operating Temperature
-10°C to +50°C

Alarm Mode
Audio-visual alarm with adjustable volume

Display
LED digital display panel

Zones
Single/Multiple zone detection (depending on model)

Weight
Approximately 65 kg

Material
High-strength metal alloy housing

Operation Mode
Continuous or Standby

DFMD ( Door Frame Metal Detector) Trade Information

Minimum Order Quantity
1 Set

Supply Ability
50 Sets Per Week

Main Domestic Market
All India

About DFMD ( Door Frame Metal Detector)

Characteristics & Functions:

Stable performance, 18 Zones.

Based on Auto-set microcontroller.

Detects all types of ferrous and non-ferrous

Security level up to 100 levels.

Sensitivity of each zone from 0 to 200.

Self-calibration starts once powered ON.

2 Light bars with human body localization

Counter: Record the pass and alarm numbers.

Operational frequency 0-99 can be adjusted automatically.

Waterproof mica pasted on panel & provided ABS plastic boot top bottom (IP 65 Protected).

Harmless to the human body (Heart Pacemaker, Pregnant Women, Magnetic Floppy, Recording Tape etc.).

Technical Parameter:

External: approx.2200mm (h) x 860mm (w) X 470mm (d) ï5%.

Passage: approx.2040(h) X 720(w) X 370(d) ï5%.

Net wt.: Around 50 kgs.

Voltage: AC100 - 240V / Frequency: 50 ï 60Hz

Power: 12W / Input: - +12V /4.2A

Humidity: 95% Non-condensing.

Workplace Environment: - 20C to 55C.

NABL tested

Battery backup optional

Ramp over optional

Specialized counter optional

Computer system optional

Advanced Detection Technology

Our DFMD incorporates highly sensitive adjustable detectors capable of identifying even small metal objects. With customizable single or multiple zone models, it provides accurate pinpointing while minimizing false alarms, making it ideal for environments where uncompromising security is essential.

Durability and All-Weather Performance

Built using a high-strength metal alloy, the DFMD is both sturdy and waterproof, ensuring it withstands demanding indoor or outdoor environments in temperatures ranging from -10C to +50C. This resilience makes it a reliable choice for year-round security management.

User-Friendly Operation and Installation

Designed for quick assembly, the DFMD comes with a detailed installation manual and offers a choice of continuous or standby operation modes. The LED digital display, audio-visual alarm with adjustable volume, and intuitive controls ensure easy usage for security staff.

FAQ's of DFMD ( Door Frame Metal Detector):

Q: How is the DFMD (Door Frame Metal Detector) installed?

A: Installation is made easy with the provided instruction manual. The detector can be assembled and set up at entry or exit points using standard tools, and its design accommodates most common doorways.

Q: What locations are suitable for installing the DFMD?

A: The DFMD is ideal for security checking at entrances and exits of places like airports, offices, malls, public events, and schools. Its waterproof, high-strength alloy construction also makes it suitable for outdoor installations.

Q: When should I use the adjustable sensitivity feature?

A: The adjustable sensitivity feature allows you to detect smaller or larger metal objects, depending on your security needs. This flexibility is useful for high-risk scenarios where even tiny metal items must be identified.

Q: How do the alarm and rejection alert systems work?

A: If a concealed metal object is detected, the DFMD triggers an audio-visual alarm with adjustable volume, and rejection is further indicated with a buzzer and LED indicators to prompt staff response.

Q: What are the benefits of having adjustable scanning frequency?

A: Adjustable scanning frequency allows the unit to minimize interference from nearby electronic devices, ensuring more accurate detection and dependable operation in busy or high-tech environments.

Q: Where can I buy or source the DFMD in India?

A: DFMDs are available through authorized manufacturers and suppliers across India, specializing in security equipment. Contact your local distributor for ordering and installation support.

Q: What makes the DFMD suitable for use in outdoor environments?

A: The DFMD is housed in a waterproof, high-strength metal alloy casing and operates reliably across a wide temperature range, making it ideal for outdoor installations without compromising performance or durability.
